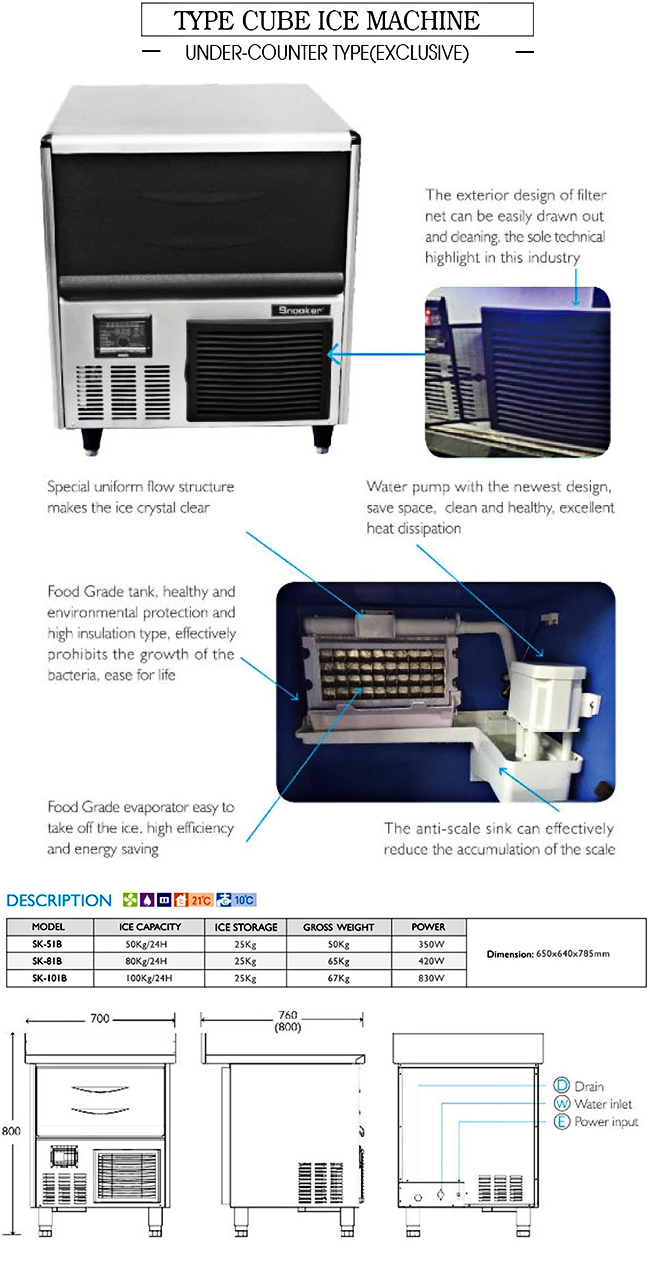

Commercial Ice Making Machine Equipment for Restaurant
Under-counter Machine Ice Maker + Customizable countertops
1. Widely Ice factory, Drinks & coffee shop, bar, hotel,
restaurant,Supermarket, stores, food market,Food Processing
factory.
2. Durable design, good pumps are durable foundation continuously
drawing.
3. Special uniform flow structure makes the ice crystal clear.
4.The exterior design of filter net can be easily drawn out and
cleaning,the sole technical highlight in this industry.
5. Food grade tank,healthy and environmental protection and high
insulation type,effectively prohibits the growth of the
bacteria,ease for life.
6. Food Grade evaporator easy to take off the ice,high efficiency
and energy saving.
Cube ice machine is widely use in ice factory, drinks&coffee
shop, bars, hotel, restaurant, Supermarket, stores, food
market,Food Processing factory.
With durable design, good pumps are durable foundation continuously
drawing,it’s energy saving and efficiently working.
Stainless construction and Eco-friendly design,it’s very solid for
daily use.
The exterior design of filter net can be easily drawn out and
cleaning,the sole technical highlight in this industry.Special
uniform flow structure makes the ice crystal clear.
Food grade tank,healthy and environmental protection and high
insulation type,effectively prohibits the growth of the
bacteria,ease for life.
Technical Highlight:
1, Unique patented siphon drainage way can make the scale not be
piled up and make the ice more crystal clear.
2, Overflow drainage can constantly drain scale at the bottom of
water tank from the machine and make ice more transparent and hard.
It lower the ice center temperature and prolonged the solvent time,
so the ice drink will be more refreshing, crisp and tasting fine.
3, By humanity design for cold light lamp, people can take ice
freely under the weak light without disturbing others. It can
easily add ultraviolet germicidal lamp to make the ice more
cleaning and let people more healthy as well as the machine more
environmentally friendly.
4, Vertical Ice Machine has a elegant appearance with the design of
arc shape door and door frame.
5, Ice Machine is very convenient for maintaining to get off the
front panel by just easily unbolting off the four screws and frame
structure can quickly remove the right and left side panel, roof
and back panel.
7, Optional intelligent voice system can report faults and makes
more convenient for the
| Item Name: | Ice Maker | Materail: | Stainless Steel 304 |
|---|
| Type: | Patent | Ice Shape: | Square |
|---|
| Compressor: | Secop | Cooling Type: | Air Cooling |
|---|
| Cooling Speed: | 5-15mins | Feature: | Voice Prompt System |
|---|
| Overall Dimension(mm): | 650*640*785 | Daily Output(kg/24h): | 50 |
|---|
| Power(w): | 350 | Specifications Table 1(width X Depth): | 700x700mm |
|---|
| Specifications Table 2(width X Depth): | 700x760mm |
|---|
| High Light: | commercial kitchen equipment fridges,commercial fridge freezer |
|---|
| Model No. | BY-SK-51B | BY-SK-81B | BY-SK-101B |
| Overall Dimension(mm) | 650*640*785 | 650*640*785 | 650*640*785 |
| Daily Output(kg/24h) | 50 | 80 | 100 |
| Capacity of Ice Bin(kg) | 25 | 25 | 25 |
| Power Suppy | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| Power(w) | 350 | 420 | 830 |
| Condensing Mode | Air Cooling | Air Cooling | Air Cooling |
| Ice maker primary parts scheme |
| Part appellation | Producing factory | Original producing area |
| Compressor | COPELAND/DANFOSS | US/DANMARK |
| Expanding Valve | DANFOSS | DANMARK |
| Cooling Fan | EBM | GERMANY |
| Dry Filter | DANFOSS | DANMARK |
| Defrosting Electromagnetism Valve | SAGINOMIYA | JAPAN |
| Pump Motor | MORRILL/NUBLA | US |
| Microcomputer IC Board | PAZIKE | HONGKONG |
