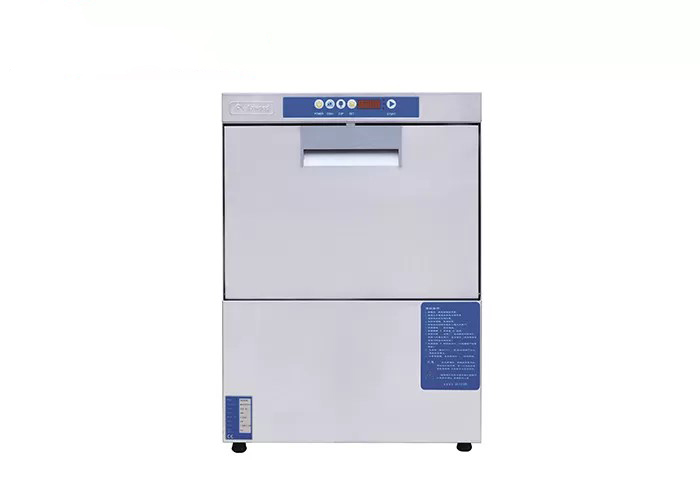

Desktop Commercial Under Bar Dishwasher SS304 Glass Under Sink 220V
AC 573*607*820
Efficient cleaning system: The ABT gold armor counter-rotating water curtain hedging jet
technology system used in this machine has strong hedging spray to
every corner to ensure the cleaning effect.
Economical and energy-saving: Adopt high-intelligent and precise control technology to ensure
that the washing effect and indicators are consistent; the energy
consumption is reduced by 20~30% compared with the traditional one.
Simple to use: This machine is user-friendly design, built-in washing and
recording system, easy to operate, maintain and manage, saving
labor and taking up less space.The unique sandwich door design
combines the functions of heat preservation and heat insulation,
and effectively reduces noise.
Rugged and durable: All parts and components are made of high quality and durable
products at home and abroad. The high-efficiency water pump is made
in Italy and is highly efficient, ensuring washing power. The whole
machine adopts stainless steel (SS304), which is manufactured
according to the foreign production experience and technology for
more than 50 years.
1. The desktop dishwasher is compact, small in space, small in size
and flexible in placement.
2. The cabinet dishwasher has a standardized form factor and a
large capacity for use with the entire kitchen.
3. The integrated size of the sink is the same as the sink, the
volume is small, the installation does not need to change the water
to change the electricity, suitable for the Chinese kitchen.
4. The embedded dishwasher capacity is relatively large. After the
embedded installation, it is integrated with the kitchen cabinet.
Technical parameter:
| Name: | Dishwasher | Washing Capacility: | 40 Baskets Per Hour |
|---|
| Material: | Stainless Steel | Warranty: | One Year |
|---|
| Volt: | 220V/380V | Usage: | Commercial Kitchen |
|---|
| Feature: | High Efficiency | Color: | As Show |
|---|
| High Light: | high temperature commercial dishwasher,commercial bar dishwasher |
|---|
| AXE-302D | AXE-301D |
| Power Requirements | 220V AC/50Hz/1PH | N~380V AC/50Hz/3PH |
| Inlet water temperature (degrees Celsius) | 10-60 | 10-60 |
| Dimensions (mm) | 573*607*820 | 573*607*820 |
| Maximum washing capacity | 40 | 40 |
| Total power (kW) | Maximum power 3 | 8.78 |
| Total current (A) | 15 | 19 |
| Air switch rated power supply (A) | 16 | 25 |
| Drier syringe (1) | 1 | 1 |
| Detergent Dispenser (1) | 1 | 1 |
| Drain pump (a) | 1 | 1 |
| Number of washing times (times) | 9999 | 9999 |
| Table pre-match (position) | 150 | 175 |
